Interactive Grain
Image Segmentation

using Graph Cut Algorithms

Jarrell Waggoner$^1$ / @malloc47 /,
Youjie Zhou$^1$, Jeff Simmons$^2$, Ayman Salem$^3$, Marc De Graef$^4$, Song Wang$^1$

$^1$USC, $^2$AFOSR, $^3$MRi, $^4$CMU

Computer Science

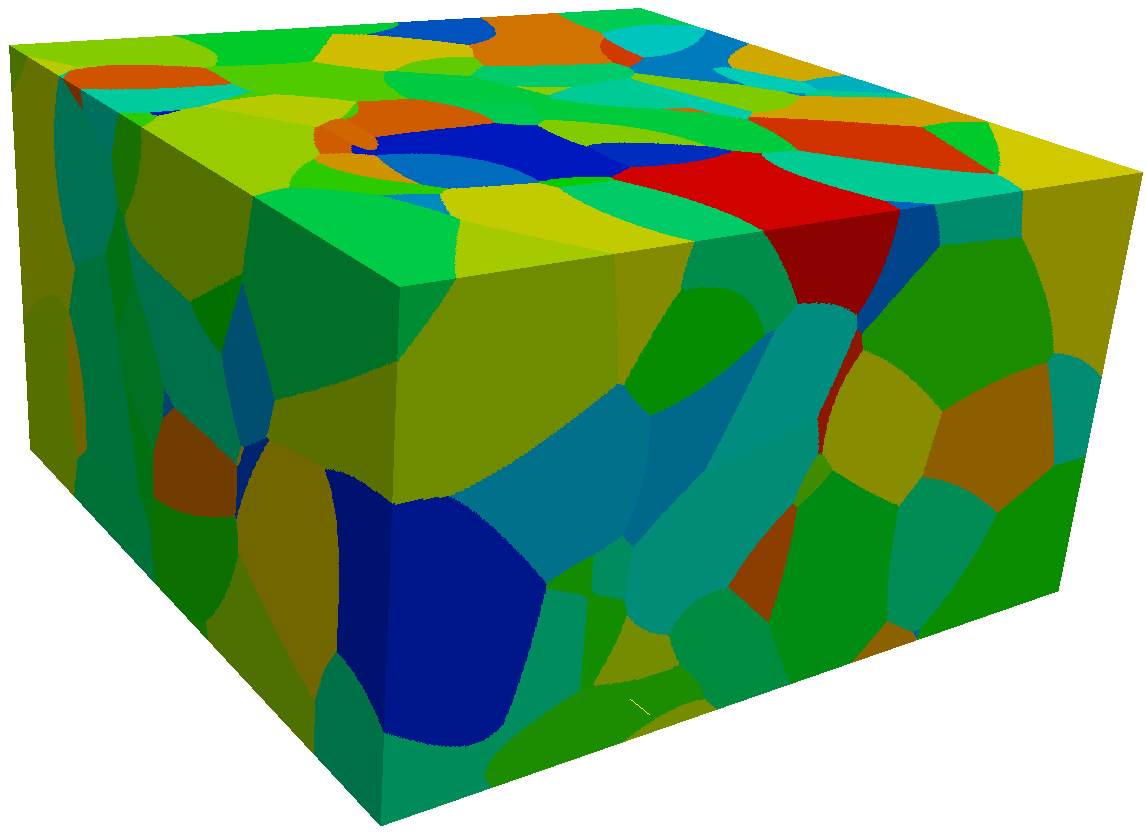

Materials Science

Materials Science

Rapid analysis of materials will help

  • Develop faster, safer vehicles
  • Make lighter computers, phones, and batteries
  • Find new sources of power
  • Stronger buildings and other structures
  • Create new human tissue repair mechanisms
  • Expedite R&D for new materials

Interactive Segmentation

  • Fully-automatic segmentation won't ever be perfect
  • Incorporate a small number of user interactions ("clicks") as additional guidance in the segmentation process
  • Our approach: start from an automatic method, and use interaction to correct errors

Automatic Segmentation Errors

Segmentation Error Segmentation Error
Segmentation Error Segmentation Error


Incorporate human interaction into the segmentation task to

  • Remove Spurious Segments
  • Add Missing Segments

with minimal interaction

Automatic Segmentation

In our previous work, the automatic segmentation was done by using an energy of the form

\begin{equation} E( S^V ) = \sum_{p\in V}\Theta_p(S^V_i) + \sum_{\{p,q\}\in\mathcal{P}^V_n} \Phi_{pq}(S_i^V , S_j^V) \end{equation}


  • $\Theta$ : controls where each segment can go
  • $\Phi$ : controls which segments may be neighbors


Removal Input

We require only a single annotation (click) identifying a particular segment $S^V_k$ to be removed

Update Energy Term

Update the $\Theta$ term to allow $S^V_k$ to be reassigned to its neighbors:
\begin{equation} \begin{aligned} \forall p \in S^V_k ,& \quad \Theta_p(\tilde{S}^V_i) = \left\{ \begin{array}{lcr} 0, & S^V_i \in \{\mathcal{A}^V\}_k \\ \infty, & \textrm{ otherwise} \\ \end{array} \right.\\ \end{aligned} \end{equation}


Addition Input

Require three inputs:

  • Center point $c$ for new segment
  • Seed radius $s$ around the center point which is completely contained within the desired grain
  • Dilation radius $d$ around the center point which completely covers the desired grain

Update Energy Terms

\begin{equation} \Theta_p(\tilde{S}^V_{n+1}) = \left\{ \begin{array}{lcr} 0, & \| p - c \| \leq d \\ \infty, & \textrm{ otherwise} \\ \end{array} \right. \end{equation}

\begin{equation} \Theta_p(\tilde{S}^V_i) = \left\{ \begin{array}{lcr} \infty, & \| p - c \| \leq s \textrm{ and } i \neq n+1 \\ \Theta_p(S^{V}_i), & \textrm{ otherwise.} \\ \end{array} \right. \end{equation}

Parameter Estimation Visual Example

$d = 2\times s$





Qualitative Results


  • Augmented our previous propagation approach with an interactive component that increases performance
  • Handle both segmentation addition and removal using minimal interaction
  • Show that this improves the quality of the segmentation, and is faster than other methods
